I have $n$ words and their relatedness weight that gives me an $n\times n$ matrix. I'm going to use this for a search algorithm but the problem is I need to cluster the entered keywords based on their pairwise relation. So let's say if the keywords are { tennis, federer, wimbledon, london, police } and we have the following data from our weight matrix:

            tennis  federer  wimbledon  london  police
tennis        1       0.8       0.6       0.4     0.0
federer       0.8      1        0.65      0.4     0.02
wimbledon     0.6     0.65       1        0.2     0.09
london        0.4     0.4       0.2        1      0.71
police        0.0     0.02      0.09      0.71     1

I need an algorithm to to cluster them into $2$ clusters: { tennis, federer, wimbledon } and { london, police }. Is there any known clustering algorithm than can deal with such thing? I did some research, it appears that K-means algorithm is the most well known algorithm being used for clustering but apparently K-means doesn't suit this case. I would greatly appreciate any help.

Rodrigo de Azevedo
  • 23,223
Tohid
  • 163
  • This matrix is symmetric, can't you just transverse the upper triangle and cluster the words with compatibility $>0.5$ or something like that? – Asaf Karagila Dec 09 '11 at 20:53

2 Answers2

6

You should use principal components analysis. Here's a quick demo in Matlab. You enter your weights matrix:

weights =

1.0000    0.8000    0.6000    0.4000         0
0.8000    1.0000    0.6500    0.4000    0.0200
0.6000    0.6500    1.0000    0.2000    0.0900
0.4000    0.4000    0.2000    1.0000    0.7100
     0    0.0200    0.0900    0.7100    1.0000

and take its singular value decomposition with the command svd:

>> [u s] = svd(weights);

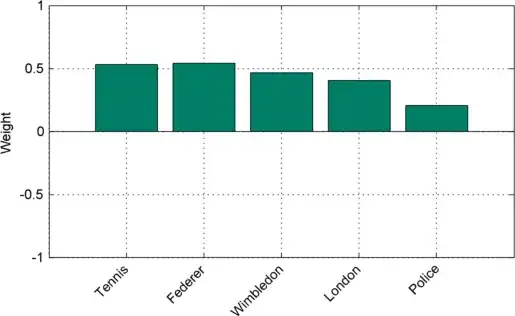

Now the columns of u contain information on how your words are related to each other and s contains information on how much information from the underlying table is contained in each column. Since all of your weights are greater than zero, the first column simply says that all of the weights are related (e.g. if your weights are correlations in search traffic, you can think of this as saying that each term increases when the overall amount of search traffic increases):

>> u(:,1)

ans =

0.5307
0.5419
0.4668
0.4054
0.2064

enter image description here

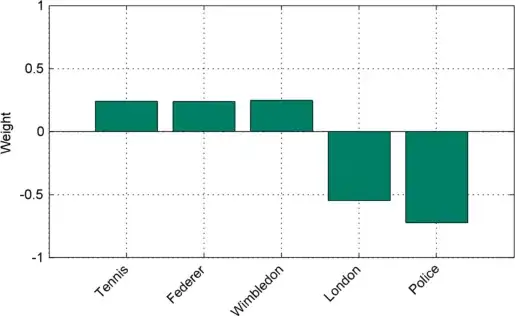

The second column of u contains information on how the search terms cluster together:

>> u(:,2)

ans =

 0.2396
 0.2380
 0.2475
-0.5478
-0.7243

enter image description here

This is telling you that the first three terms ("tennis", "Federer" and "Wimbledon") are related to each other, as are the second two ("London", "police")

The diagonal entries of the matrix s tell you what portion of the information is in each of the columns. More specifically, if we take their cumulative sum and normalize it by the total, we get a vector whose n'th entry tells us how much information is retained if we only look at the first n columns:

>> cumsum(diag(s))/sum(diag(s))

ans =

0.5300
0.8300
0.9315
0.9708
1.0000

This tells us that we retain 83% of the relevant information in the weights matrix if we only look at the first two columns.

Chris Taylor
  • 29,755
  • 3
    I don't think PCA is appropriate. For example, take the two principal components you found. If you have a third cluster in the plane of the two principal components, PCA will not separate it, but clustering algorithms are built to deal with this. – cyborg Dec 12 '11 at 18:33
2

You should feed a different matrix into k-means clustering, namely: 1-weights. Clustering algorithms require similar words to correspond to close points in space, and your weights are the opposite.

cyborg
  • 228
