Inspired by this Sangaku-style question about a constellation of circles, I've come up with the following question.

How can we construct, with straightedge and compass, the following diagram?

enter image description here

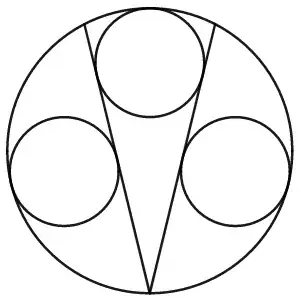

Description: In a (large) circle, two equal length chords share a point on the circle. In each of the two segments thus formed, a largest possible circle is inscribed. A third circle touches the large circle and both chords. The three inscribed circles are of equall radii.

The ratio of the large circle's radii to the smaller circles' radii is $\phi+1$, where $\phi=\frac{1+\sqrt5}{2}$ is the golden ratio (proof).

If we construct the chords, then the circles are easy to draw. But how can we construct the chords?

Dan
  • 35,053

2 Answers2

2

The ratio of the smaller circle to the larger circle is $$\frac{1}{\phi+1}=\frac{3-\sqrt{5}}{2}$$

If you decide on the radius of the larger circle first, say $1$ unit, then draw a straight line of length $3$ units.

Take a point $2$ units from one end of the line, and construct a perpendicular from there of length $1$ unit to make a right-angled triangle whose hypotenuse is $\sqrt{5}$. Mark off the length $\sqrt{5}$ from one end of the first line. Bisect the remaining length of that line to make a length of $$\frac{3-\sqrt{5}}{2}$$

Now that you have the smaller radius you can draw the upper circle first, then the chords, and finally the two side circles, a process which should be fairly routine.

David Quinn
  • 35,087
1

We can elegantly get the required radius ratio by constructing a regular pentagon, for example by Ptolemy's method. After constructing the pentagon, draw the diagonals to define the inner pentagon of the associated pentagram. Then the radius of the large circle may be taken as the side of the outer pentagon and the radius of the small circles as the side of the inner pentagon.
