Derive the Simpson's $\frac{3}{8}$ rule

Simpson's $\frac{3}{8}$ rule for integration can be derived by approximating the given function $f(x)$ with the $3^{\text{rd}}$ order(cubic) polynomial $f_3(x)$ $$f_3(x)=a_0+a_1x+a_2x^2+a_3x^3$$ Using Lagrange interpolation, the cubic polynomial function $f_3(x)$ that passes through $4$ can be explicitly given as $$f_3(x)=\frac{(x-x_1)(x-x_2)(x-x_3)}{(x_0-x_1)(x_0-x_2)(x_0-x_3)}f(x_0)+\frac{(x-x_0)(x-x_2)(x-x_3)}{(x_1-x_0)(x_1-x_2)(x_1-x_3)}f(x_1)+\frac{(x-x_0)(x-x_1)(x-x_3)}{(x_2-x_0)(x_2-x_1)(x_2-x_3)}f(x_2)+\frac{(x-x_0)(x-x_1)(x-x_2)}{(x_3-x_0)(x_3-x_1)(x_3-x_2)}f(x_3)$$ \begin{align} I&=\int_a^bf(x)\:dx\\ &\approx \int_a^bf_3(x)\:dx \qquad\qquad\qquad\qquad\qquad\qquad\qquad\qquad\qquad\qquad(1)\\ &=(b-a)\times \frac{f(x_0)+3f(x_1)+3f(x_2)+f(x_3)}{8} \end{align}

Whenever I tried to integrate $(1)$ I completely lost. My Lecturer didn't provide any other method even all previous derivation$(\text{Simpson's }\frac{1}{3},\text{trapezoid})$ was also done by this. Lagrange method is mostly a theoretical tool used for proving those theorems. Not only it is not very efficient when a new point is added (which requires computing the polynomial again, from scratch). I feel there must be another way to derive those formula by easily and I got this. But which isn't familiar with me and I failed to apply it in those derivation.
I heartily thank if anyone explain the linked rule in details.

falamiw
  • 956
  • If the question is "how to integrate $f_3$" then you may notice that $f_3$ is just a polynomial of third degree which can be integrated easily (the computations are still tedious because the coefficients of the polynomial are somewhat clumsy) – Maximilian Janisch Dec 23 '19 at 20:30
  • @MaximilianJanisch I can integrate $f_3$ but it's tedious in exam. That's why I need an alternative approach where I can ignore such tedious integration. I linked a answer where the method of undetermined coefficients was discussed. But I failed to understood because of shortly describe. I need a bit more details(demonstration) to gasp the method. – falamiw Dec 23 '19 at 20:34
  • 5
    Oh wait, I didn't know you have to do this in an exam – Maximilian Janisch Dec 23 '19 at 20:35
  • Ok maybe this helps: https://math.stackexchange.com/q/1661439/631742 – Maximilian Janisch Dec 23 '19 at 20:37
  • Thanks in advances @MaximilianJanisch. I will wait to see your work – falamiw Dec 23 '19 at 20:38
  • The idea in the linked post is the same as in the one you already found: Because you know that the integral is exact for the polynomials $1,x,x^2$, you can turn the integration into a task of solving a linear equation system – Maximilian Janisch Dec 23 '19 at 20:40
  • @MaximilianJanisch it still need the integration $f_3(x)$ from $-1$ to $1$. and at the bottom they mention quadrature rule which still confusing me. :) – falamiw Dec 23 '19 at 20:49

1 Answers1

3

OK, so we're in a test and have to knock this out quickly and efficiently. Get rid of the variables and derive the rule $$\int_0^3f(x)dx=w_0f(0)+w_1f(1)+w_2f(2)+w_3f(3)$$ Let's take some moments: $$\int_0^31\,dx=\left.x\right|_0^3=3=w_0+w_1+w_2+w_3$$ $$\int_0^3x\cdot1\,dx=\left.\frac12x^2\right|_0^3=\frac92=w_1+2w_2+3w_3$$ $$\int_0^3x(x-1)\,dx=\int_0^3\left(x^2-x\right)dx=\left[\frac13x^3-\frac12x^2\right]_0^3=9-\frac92=\frac92=2w_2+6w_3$$ $$\begin{align}\int_0^3x(x-1)(x-2)dx&=\int_0^3\left(x^3-3x^2+2x\right)dx=\left[\frac14x^4-x^3+x^2\right]_0^3\\ &=\frac{81}4-27+9=\frac94=6w_3\end{align}$$ So we have done easy products, always a binomial times a polynomial and easy integrals and although we still have $4$ equations in $4$ unknowns, the system is in echelon form so we just have to back-substitute: $$w_3=\frac16\left(\frac94\right)=\frac38$$ $$w_2=\frac12\left(\frac92-6\left(\frac38\right)\right)=\frac98$$ $$w_1=\frac92-2\left(\frac98\right)-3\left(\frac38\right)=\frac98$$ $$w_0=3-\frac98-\frac98-\frac38=\frac38$$ The last couple of back-substitutions and the first couple of integrals could have been skipped if we had anticipated the symmetry of the weights $w_i$.

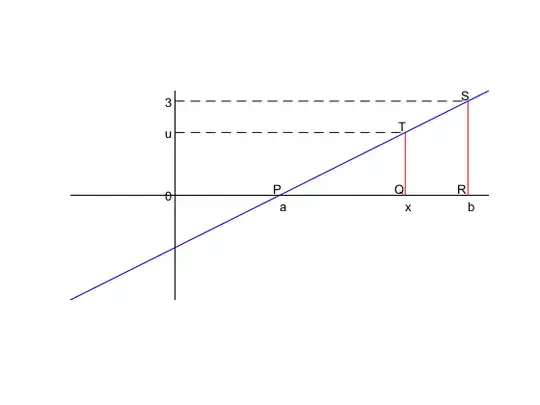

EDIT: In comments I seem to have been asked to derive the two-point formula for a line connecting $2$ points in the plane. Consider the following drawing: geometry
The line connecting the two points $P=(a,0)$ and $S=(b,3)$ has been plotted in the $uv$-coordinate plane. Also a general point $T=(x,u)$ has been plotted along the line. Line segments parallel the the $u$-axis have been drawn from $T$ and $S$ down to the $x$-axis ending at $Q=(x,0)$ and $R=(b,0)$ respectively. From geometry the triangles $\triangle PRS$ and $\triangle PQT$ are similar, so the ratios between corresponding sides are equal: $$\frac{|PQ|}{|QT|}=\frac{x-a}{u-0}=\frac{|PR|}{|RS|}=\frac{b-a}{3-0}$$ So the two-point formula for a line is $x=a+(b-a)u/3$. You can check that when $x=a$, $u=0$ and when $x=b$, $u=3$ as required.

Now, if we want to generalize this to any interval $[a,b]$ use the two-point formula to get $$\frac{x-a}{u-0}=\frac{b-a}{3-0}$$ So $x=a+\left(\frac{b-a}3\right)u=a+hu$, $dx=h\,du$ and $$\int_a^bf(x)dx=h\int_0^3f(a+hu)du=h\left(\frac38\right)\left(f(a)+3f(a+h)+3f(a+2h)+f(a+3h)\right)$$

user5713492
  • 16,333
  • thanks a lot(+1). Really it's quite less work. One last question why integrate $1,x,x(x-1),x(x-1)(x-2)?$ suppose I want use it to derive simpson's $\frac{1}{3}$ then is it change to $1,x,x(x-1)?$ But why integrate like this pattern? Again thanks a lot for your effort. – falamiw Dec 24 '19 at 09:03
  • The reason for the pattern is that it takes roughly $\frac23n^2$ arithmetic operations to reduce an $n\times n$ matrix to echelon form which is the task you would be faced with if you integrated $1$, $x$, $x^2$, and $x^3$. Effectively choosing the above pattern of trial functions reduces the system to echelon form in roughly $2n^2$ operations. Try it for the $3$-point formula as you suggested or the $5$-point formula and compare. – user5713492 Dec 24 '19 at 10:25
  • 1
    is it a typo in $$h\int_0^3f(a+hu)du=h\left(\frac38\right)\left(f(a)+3f(a+h)+3f(a+2h)+f(a+3h)\right)$$@user5713492 – Dr.Antidode Dec 24 '19 at 10:52
  • @Dr.Antidode Yes, thanks. – user5713492 Dec 24 '19 at 18:16
  • @user5713492 I just want to thanks you again. I derive all of my numerical method formula using your answer. But I notice that I didn't understand your generalization of interval [a,b].$$\frac{x-a}{u-0}=\frac{b-a}{3-0}$$Can you tell me how it come from.And is this method called Quadrature? I will accept your answer and close this thread then. – falamiw Dec 25 '19 at 13:38
  • 1
    @falamiw : The pattern results from the use of the Newton interpolation formula $$p(x)=p(x_0)+px_0,x_1+px_0,x_1,x_2(x-x_1)+px_0,x_1,x_2,x_3(x-x_1)(x-x_2)$$ instead of the Lagrange interpolation formula used in the task formulation. While the Lagrange variant allows to directly read off the coefficients, the integrals are visibly more complicated. – Lutz Lehmann Dec 26 '19 at 16:52
