Consider the PDE initial value problem $$\frac{\partial u}{\partial t}+(1-2u)\frac{\partial u}{\partial x}=0,$$ $$u(x,0)=f(x),$$ with the initial conditions for traffic congestion:

$$f(x)=\begin{cases} \frac{1}{3} & \text{if }\left|x\right|\ge 1\\ \frac{1}{2}\left( \frac{5}{3}-\left| x \right| \right) &\text{if } \left|x\right|\le 1\\ \end{cases}$$

This equation can be solved by the method of characteristics to obtain $$u(x,t)=f(x)+f(x-t(1+2u))$$

Now to find the time $t_s$ and position $x_s$ of the initial shock formation, we can do the following:

$$u(x,t) = f(x)+f(\tau)$$ $$x=(1-2f(\tau))t+\tau$$ $$u_x(x,t) = f'(x) + f'(\tau)\tau_x$$ $$1=-2tf'(\tau)\tau_x+\tau_x=\tau_x(1-2tf'(\tau))$$ $$\tau_x=\frac{1}{1-2tf'(\tau)}$$ $$u_x = f'(x)+\frac{f'(\tau)}{1-2tf'(\tau)}$$

Now to find the time and position of the initial shock formation, we need

$$t_s=\min_\tau\left( -\frac{1}{f'(\tau)} \right)$$

But the question is: how do we find $f(\tau)$?

sequence
  • 9,986
  • Well if you have $f(x)$, $f(\tau)$ is the same, just replace $x$ by $\tau$ :-) – Shawn Aug 07 '16 at 04:52
  • $x$ and $\tau$ are two completely different variables here. $\tau = x-(1-2u)t$. – sequence Aug 07 '16 at 04:58
  • If you last equation is filly correct (I didn't check the above math), it does not matter. What matters is the definition of $f$. You can express $f'$ "easily" from the definition of $f$, then plug that in the last equation, find it's minimum (if any/if it exists) by minimizing over $\tau$ and that will give you $t_s$. I didn't fully understand the math above though so maybe the last equation means different to you. – Shawn Aug 07 '16 at 05:21
  • 1
    @sequence : did you check if your result $u(x,t)=f(x)+f(x-t(1+2u))$ agrees with the PDE ? You just have to put it into the PDE and see if it is satisfied. If you had done this check, you would have seen that your result is false. – JJacquelin Aug 07 '16 at 07:33
  • @JJacquelin thanks for pointing this out. I've tried to substitute the following solution: $u(x,t)=f(x-t(1-2u))$ and it worked. I think I misplaced the sign somewhere. But I'm concerned about the initial traffic conditions for $f(x)$. How do we then add it to the equation? – sequence Aug 07 '16 at 07:46
  • 1
    Now, $u(x,t)=f(x-t(1-2u))$ is OK. In the wording of your question, you should correct the equation $u(x,t)=f(x)+f(x-t(1+2u))$ which is false : why is there $f(x)$ in it ?. – JJacquelin Aug 07 '16 at 07:55
  • Right, I seem to have gotten entangled in the functions. So, then, we don't have to add the $f(x)$. The piecewise function for $f(x)$ is just defined for $t=0$. I will try to solve for $f'(\tau)$ and will post about my results. – sequence Aug 07 '16 at 08:04
  • @JJacquelin it's still not clear how to find $f'(\tau)$ from the expression $u_x = \frac{f'(\tau)}{1-2tf'(\tau)}$. We don't have an explicit definition for $u_x$. – sequence Aug 07 '16 at 09:20
  • Sorry, I cannot help you because $\tau$ isn't defined and I don't understand what you do with $f'(t)$ since $f(x)$ isn't function of $t$. – JJacquelin Aug 07 '16 at 10:52
  • @JJacquelin $\tau = x-t(1-2u))$. – sequence Aug 07 '16 at 18:14

2 Answers2

1

The general solution of the PDE is : $$u(x,t)=F(x-t(1-2u))$$ where $F$ is any differentiable function.

Do not confuse $F$ with $f$ appearing in the initial condition : $$f(x)=\begin{cases} \frac{1}{3} & \text{if }\left|x\right|\ge 1\\ \frac{1}{2}\left( \frac{5}{3}-\left| x \right| \right) &\text{if } \left|x\right|\le 1\\ \end{cases}$$ The initial condition is : $u(x,0)=F(x)=f(x)$ which determines $F$ as : $$F(X)=\begin{cases} \frac{1}{3} & \text{if }\left|X\right|\ge 1\\ \frac{1}{2}\left( \frac{5}{3}-\left| X \right| \right) &\text{if } \left|X\right|\le 1\\ \end{cases}$$ In the particular solution fitting to the initial condition, $X\neq x$ but $X=x-t(1-2u)$ $$u(x,t)=\begin{cases} \frac{1}{3} & \text{if }\left|x-t(1-2u)\right|\ge 1\\ \frac{1}{2}\left( \frac{5}{3}-\left| x-t(1-2u) \right| \right) &\text{if } \left|x-t(1-2u)\right|\le 1\\ \end{cases}$$ You see that it is very different from the cases $|x|\ge 1$ and $|x|\le 1$ because $u$ is involved into them.

JJacquelin
  • 68,401
  • 4
  • 40
  • 91
0

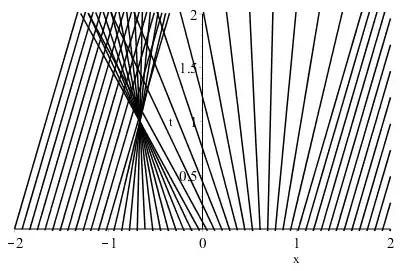

This is a sketch of the characteristic curves $x(t) = (1-2f(x_0))t+x_0$ in the $x$-$t$ plane:

characteristics

Characteristics seem to intersect at $t=1$. This can be recovered via the expression of the breaking time \begin{aligned} t_s &= \frac{-1}{\min\, (1-2f)'(x)} \\ &= \frac{1/2}{\max f'(x)} \\ &= 1 \, . \end{aligned}

N.B. : this is the LWR traffic flow model.

EditPiAf
