How to add class labels to confusion matrix of multi class classification

Question

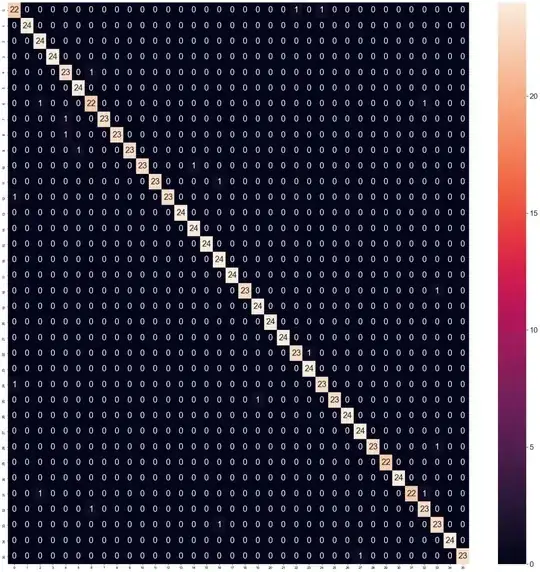

How do I add class labels to the confusion matrix? The label display number in the label not the actual value of the label Eg. labels = ['A','B','C','D','E','F','G','H','I','J','K','L','M','N','O','P','Q','R','S','T','U','V','W','X','Y','Z']

Here is the code I used to generate it.

x_train, y_train, x_test, y_test = train_images, train_labels, test_images, test_labels
model = KNeighborsClassifier(n_neighbors=7, metric='euclidean')
model.fit(x_train, y_train)
# predict labels for test data
predictions = model.predict(x_test)
Print overall accuracy
print("KNN Accuracy = ", metrics.accuracy_score(y_test, predictions))
Print confusion matrix
cm = confusion_matrix(y_test, predictions)
plt.subplots(figsize=(30, 30))         # Sample figsize in inches
sns.set(font_scale=2)
sns.heatmap(cm, annot=True)

Answer 1

You can use the xticklabels and yticklabels arguments for this as specified in the seaborn documentation. See also the following answer on a different question on the datascience stackexchange.

Answer 2

You can also pass the correctly labeled predictions to the confusion matrix.

from sklearn.preprocessing import LabelEncoder
from sklearn.metrics import ConfusionMatrixDisplay
labelEnc = LabelEncoder()
y = labelEnc.fit_transform(...) # Encode string-labels with numbers.
ConfusionMatrixDisplay.from_predictions(
    labelEnc.inverse_transform(y_test), # Decode numbers to string-labels.
    labelEnc.inverse_transform(y_pred))
```

Answer 3

You can first define your labels an use that in xticklabels and yticklabels values.

import seaborn as sns
import matplotlib.pyplot as plt
from sklearn.metrics import confusion_matrix
from sklearn.neighbors import KNeighborsClassifier
from sklearn import metrics
#defined your labels
labels = ['A','B','C','D','E','F','G','H','I','J','K','L','M','N','O','P','Q','R','S','T','U','V','W','X','Y','Z']
you have already trained your model and obtained predictions
Print confusion matrix
cm = confusion_matrix(y_test, predictions)
Plot confusion matrix with class labels
plt.subplots(figsize=(30, 30))
sns.set(font_scale=2)
sns.heatmap(cm, annot=True, xticklabels=labels, yticklabels=labels)
plt.xlabel('Predicted')
plt.ylabel('True')
plt.show()
