How to decrease LSTM RMSE?

Question

I am using an LSTM model to predict the next measurement of a sensor.

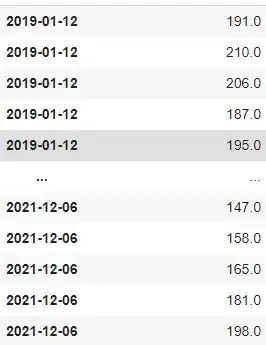

The dataset looks as follows:

There are approximately 13000 measurements.

My code for the LSTM looks as follows:

def create_dataset(dataset, look_back=6):
    dataX, dataY = [], []
    for i in range(len(dataset)-look_back-1):
        a = dataset[i:(i+look_back), 0]
        dataX.append(a)
        dataY.append(dataset[i+look_back, 0])
    return numpy.array(dataX), numpy.array(dataY)
-------------------------------------------------------------------------
numpy.random.seed(7)
dataset = new_df.values
dataset = dataset.astype('float32')
scaler = MinMaxScaler(feature_range=(0, 1))
dataset = scaler.fit_transform(dataset)
train_size = int(len(dataset) * 0.67)
test_size = len(dataset) - train_size
train, test = dataset[0:train_size,:], dataset[train_size:len(dataset),:]

look_back = 6
trainX, trainY = create_dataset(train, look_back)
testX, testY = create_dataset(test, look_back)
trainX = numpy.reshape(trainX, (trainX.shape[0], 1, trainX.shape[1]))
testX = numpy.reshape(testX, (testX.shape[0], 1, testX.shape[1]))

model = Sequential()
model.add(LSTM(2, input_shape=(1, look_back)))
model.add(Dense(1))
model.compile(loss='mean_squared_error', optimizer='adam')
model.fit(trainX, trainY, epochs=100, batch_size=1, verbose=2)
trainPredict = model.predict(trainX)
testPredict = model.predict(testX)
trainPredict = scaler.inverse_transform(trainPredict)
trainY = scaler.inverse_transform([trainY])
testPredict = scaler.inverse_transform(testPredict)
testY = scaler.inverse_transform([testY])

I tried using different learning rates(0.01, 0.001, 0.0001), more layers (1-3) and/or more neurons(1-128), epochs(40-200), I changed the training size (67-80%). I tried changing the activation function on the Dense layer(sigmoid, relu), I used different optimizers(GSD, Adam, Adagrad). I added Dropout layers, but that didn't help in decreasing the RMSE.

The RMSE doesn't drop below 6.5, the lowest value seen with the following parameters:

Train size = 0.8,
LSTM Layers = 2,
Epochs = 100,
Neurons = 32,
Look back = 10.

If anyone has any advice on how to get the RMSE to a lower value (as close to 1 as possible), I would love to hear it. I can share the dataset if needed for review.

score 1 · Answer 1 · answered Jul 31 '22 at 15:30

your neuron count was too low. try this model

model = Sequential()
model.add(LSTM(units=50, input_shape=(1, look_back)))
model.add(Dense(1))
model.compile(loss='mean_squared_error', optimizer='adam')
model.fit(trainX, trainY, epochs=100, batch_size=1, verbose=2)

score 0 · Answer 2 · answered Oct 25 '21 at 09:48

I suggest you to automate the optimal hyperparameters search with a standard hyperparametrization strategy, like bayesian search for instance; Keras offers you this option with Keras tuner as follows (example):

from tensorflow import keras
from kerastuner.tuners import BayesianOptimization
n_input = 6
def build_model(hp):
    model = Sequential()
    model.add(LSTM(units=hp.Int('units',min_value=32,
                                    max_value=512,
                                    step=32),
               activation='relu', input_shape=(n_input, 1)))
    model.add(Dense(units=hp.Int('units',min_value=32,
                                    max_value=512,
                                    step=32), activation='relu'))
    model.add(Dense(1))
    model.compile(loss='mse', metrics=['mse'], optimizer=keras.optimizers.Adam(
        hp.Choice('learning_rate',
                  values=[1e-2, 1e-3, 1e-4])))
return model
bayesian_opt_tuner = BayesianOptimization(
    build_model,
    objective='mse',
    max_trials=3,
    executions_per_trial=1,
    directory=os.path.normpath('C:/keras_tuning'),
    project_name='kerastuner_bayesian_poc',
    overwrite=True)
bayesian_opt_tuner.search(train_x, train_y,epochs=n_epochs,
     #validation_data=(X_test, y_test)
     validation_split=0.2,verbose=1)
bayes_opt_model_best_model = bayesian_opt_tuner.get_best_models(num_models=1)
model = bayes_opt_model_best_model[0]

You can find a similar topic answered and validated here
