I am trying to create a mechanism with moving parts, and would like to see how it works (whether it even works) before printing it.

For example, there's a servo with a bracket, and I would like to see how far can the bracket move before colliding with other objects.

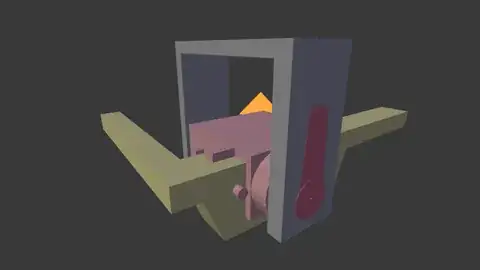

enter image description here

Unfortunately I cannot find any information on how to set pivot points and rotate objects around these points in FreeCAD. Is this even possible?

0scar
  • 37,708
  • 12
  • 68
  • 156
Art
  • 173
  • 1
  • 5

2 Answers2

3

freeCad has a draft rotate function in DRAFT workbench:

  1. Select an object;
  2. Press the Draft Rotate button, then;
  3. Click to set the rotating point and rotate.

You will get used to that after a few trails.

There is a step by step guide on freeCad site.

There is also a short demo of the function here.

Greenonline
  • 6,748
  • 8
  • 40
  • 68
profesor79
  • 2,002
  • 1
  • 11
  • 24
2

I would also like to take a look at the A2plus Workbench (Freecad Addon). There you can define constraints which can help with this problem. As far as I know, parts cannot be moved with the mouse pointer, but angle parameters can be entered.
