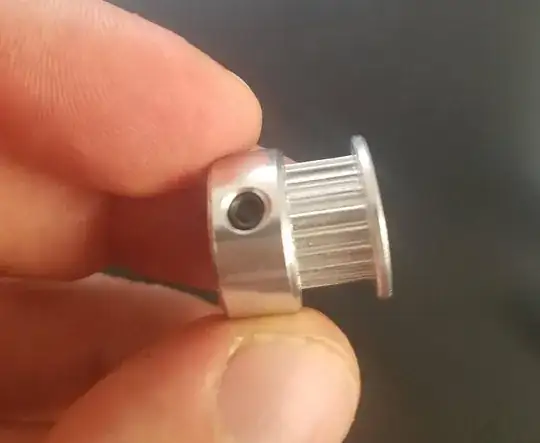

What part is this? Circular threading spool gear, about 10 mm diameter

Question

How should I describe this part which looks like a small gear so that I can research replacements?

This came with my FLSUN 3D printer, which may be based on a Prusa design.

Sean Houlihane · Accepted Answer · 2019-06-29T22:10:43.567

8

This is a timing belt pulley.

Specifically, is a GT2 timing pulley, 2 mm pitch (between teeth), 6 mm wide. The drive diameter is measured by the number of teeth (16 in this case) , the shaft diameter (bore) is measured in mm.

The 'GT2' part refers to the tooth profile, some other examples are shown half way down this page.

edited Jun 29 '19 at 22:10

answered Jun 28 '19 at 07:44

Sean Houlihane

3,852
2
22
39

K Mmmm · Answer 2 · 2019-06-27T23:19:36.940

1

It is an "aluminum timing pulley"

https://www.google.com/search?psb=1&tbm=shop&q=aluminum%20timing%20pulley&ved=0CAMQr4sDKAFqFwoTCMis1KHmiuMCFRoMswAdMqUElxAB

https://www.ebay.com/i/152446519860?chn=ps&var=453435947176

edited Jun 27 '19 at 23:19

answered Jun 27 '19 at 23:13

K Mmmm

1,742
2
17
36
