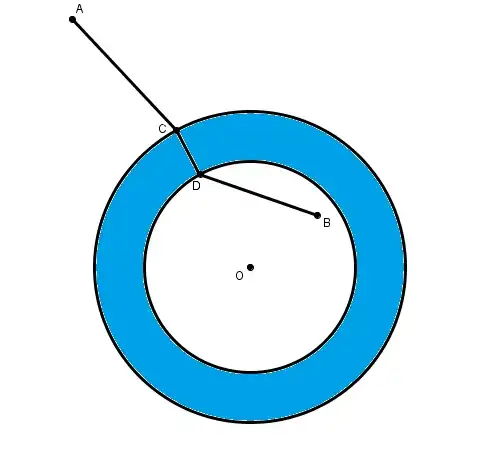

There is a river in the shape of an annulus. Outside the annulus there is town "A" and inside there is town "B". One must build a bridge towards the center of the annulus such that the path from A to B crossing the bridge is the shortest possible. Where to build the bridge?
-
3This is a variation of the classical problem where the river is two parallels (a problem that appears in many geometry books, one example is Yaglom's "Geometric Transformations I"). I've been trying to solve this for many days, I have no idea how to justify it, but experimenting with GeoGebra shows that one must join A and B and build the bridge where the segment crosses the external circle, but I don't know how to justify it... – João Rimu Oct 12 '13 at 08:21
-
If $AC+BD$ is minimal then $$\frac{AC}{\textrm{Area}(OCA)} = \frac{BD}{\textrm{Area}(OBD)}$$ but I don't know how to find the position of the bridge based on this. – WimC Oct 12 '13 at 13:44
-
1Expanding on my earlier comment: Let $r$ and $R$ be the inner and outer radius respectively. Let $\theta_r = \angle ODB$ and $\theta_R = \pi - \angle OCA$ then these must satisfy something resembling Snell's law: $$r \sin \theta_r = R \sin \theta_R.$$ – WimC Oct 12 '13 at 15:19
-
8Unless there's an additional constraint on the bridge, the shortest path is the straight line from A-B, including the bridge. I assume the bridge must be on a radius from the center of the annulus? – Mark Ping Oct 12 '13 at 15:56
-
@Mark: Yes, the problem is trivial unless the bridge is required to be on a radius. – TonyK Oct 12 '13 at 20:26
-
17Just a nitpick: there are no annular rivers. That's a lake you got yourself. – TonyK Oct 12 '13 at 20:33
-
8That's a moat!! – The Chaz 2.0 Oct 13 '13 at 00:12
-
5@TonyK Beg to differ: http://upload.wikimedia.org/wikipedia/en/e/e8/Escher_Waterfall.jpg – Neal Oct 13 '13 at 00:31
-
@Neal: Hmmmm ... I wonder if this guy could build an annular river as a limit of polygonal Escher waterfalls. – Blue Oct 13 '13 at 03:02
4 Answers
To take advantage of Snell's law, applying a limit argument: We want to find the trajectory of a light ray where the velocity on the inner and outer terrain is constant (say $v$) and the velocity on the water ($V$) tends to zero.

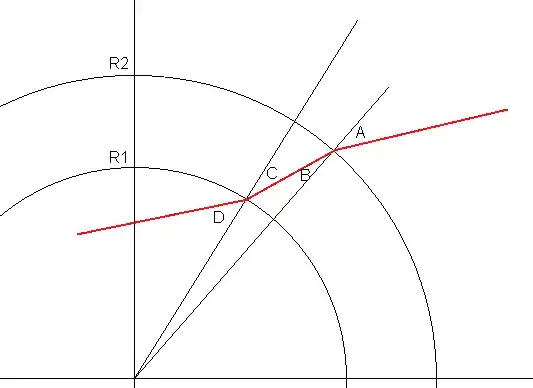

Assume first that $0< V \ll v$. Then, calling $R_1$, $R_2$ the inner and outer radius, and $A,B,C,D$ the incidence angles (see figure) we have:
$$\frac{\sin A}{\sin B}=\frac{v}{V}=\frac{\sin D}{\sin C}$$

Now, in the limit $V \to 0$ (which is our scenario) we have $$\frac{\tan B}{\tan C} \to \frac{R_1}{R_2} $$ so, because $\tan B/\tan C \to \sin B/\sin C$, the trajectories must follow the relation:
$$ R_2 \sin A = R_1 \sin D $$
What follows is a bit of trygonometry - straightforward to write, but not to find a closed form equation. I doubt that is feasible, I'd go for a iterative numeric solution, though perhaps this is not much better than simply finding the minimum length numerically. I wonder if there is some geometric construction [*].
Update: I didn't notice that this result is already pointed out in a comment by WimC.
[*] Update 2: A nice geometric interpretation (not exactly a construction) is shown in the figure below. Consider the inner segment from the inner incidence point ($d$) to the target point ($Q$), and extend it until it crosses the outer circle (point $I$). Then, consider the triangle $IdO$ (light blue in the figure), and apply to it the law of sines: $\sin A/R_1 = \sin D/R_2$. For the path to be the optimum one, both angles in the figure ($\alpha$ and $\beta$) must be equal. Click here

BTW: A comment in the question conjectures that "one must join $A$ and $B$ (here $P$ and $Q$) and build the bridge where the segment crosses the external circle". That this is false can be seen easily, (independently of this derivation). Suppose that $L$ is the optimum path (red path) joining $P$ and $Q$, then consider an alternative inner point $Q'$ that lies in $L$, "before" $Q$; then the optimum path must cross the river at the same place. This won't happen if one uses the conjectured construction.
- 66,202
-
1
-
1+1. Instead of $B/C$ the ratio $\sin(B)/\sin(C)$ seems more apparent to me from your picture (looking at the slice of annulus between the rays). It would be nice to refer to my comment that already mentioned Snell's law well before you posted your answer. – WimC Oct 14 '13 at 08:13
-
1
-
As I read this it seems to give insight, providing a relationship between $A$ and $D$, but those are still both two unknown quantities. Don't you need a second relation between $A$ and $D$ to solve for them? Maybe it's wrapped up in having that new angle at $\beta$ equal the angle at $\alpha$, but could you add more explaining why these should be equal? – 2'5 9'2 Oct 15 '13 at 20:58
-
@alex.jordan : $\alpha$ in this figure is angle $A$ in the above derivation. If it's also $\beta$, then you have a triangle with one side $R_1$ (oposite angle $\beta = \alpha = A$) and other side $R_2$ (oposite angle $D$) which satisfies the desired equation $\sin A/R_1 = \sin D/R_2$ – leonbloy Oct 15 '13 at 21:03
-
That's not the part that I don't understand. Why does $\alpha=\beta$ correspond to the optimal path? It seems like if that is true there might be some reflection argument for it. There are an infinitude of other solutions for $A$ and $D$ that satisfy $\sin A/R_1=\sin D/R_2$ without having the corresponding $\beta$ work out to equal $A$. I'm looking for the reason why the optimal path should have $\alpha=\beta$ in the first place. – 2'5 9'2 Oct 15 '13 at 22:11
-
Also, while your pictures involve $Q$'s location, none of your equations make use of it. It's like, in addition to the relation $\sin A/R_1=\sin D/R_2$, you also need the ray that exits $P$, hits the annulus, interacts with it via angles $A$ and $D$, to happen to hit $Q$. This is the second condition that I am looking for that (maybe?) explains why $\alpha$ should equal $\beta$ in a shortest path. – 2'5 9'2 Oct 15 '13 at 22:15
-
"Why does α=β correspond to the optimal path? " Because, as we have shown before (this is not a new proof, it assumes the previous) we must satisfy $\sin A/R_1=\sin D/R_2$ which is precisely the equation that corresponds to a triangle with the appropiate sides an angles (law of sines). Sorry if I cannot make it clear, it looks pretty direct to me. Did you at least try to play with the interactive graph, to feel that this is right? – leonbloy Oct 15 '13 at 23:42
-
"Also, while your pictures involve Q's location none of your equations make use of it" Consider this: suppose that for a given $Q$ you have found the optimal trajectory. Then consider another $Q'$ which is in the line $Q-d$; then the optimal trajectory must be the same. The location is relevant only inasmuch it determines the "angle of incidence" ($D$) – leonbloy Oct 16 '13 at 00:02
-
A trivial numerical implementation shows that this doesn't work out. – Mark Ping Oct 17 '13 at 00:10
-
@MarkPing: what doesn't work? the formula of the geometrical construction? would you mind sharing with us your counterexample? – leonbloy Oct 17 '13 at 00:20
-
@leonbloy My mistake. When I checked the above diagram I didn't enter the points correctly. I don't have exact coords for your Q, but it looks like it does check out numerically. – Mark Ping Oct 19 '13 at 14:43
(Edited to make coordinates symmetrical about the $x$-axis from the beginning. Also, notation is changed slightly to help distinguish the path's fixed endpoints from the bridge's variable endpoints.)
Take our path to have fixed endpoints $A(a\cos\phi, a\sin\phi)$, $B(b \cos\phi,-b\sin\phi)$ and our bridge to have to-be-determined endpoints $R(r \cos\theta, r\sin\theta)$, $S(s\cos\theta, s\sin\theta)$ (with $a \geq r\geq s \geq b$). Our goal being to find $\theta$ that minimizes $$|AR|+|RS|+|SB|$$ As $|RS| = r-s$ is constant, we "only" need to minimize $$ p:=|AR|+|SB| =\sqrt{a^2+r^2-2a r \cos\left(\theta-\phi\right)}+\sqrt{b^2+s^2-2bs\cos\left(\theta+\phi\right)}$$ The standard calculus approach is to solve for $\theta$ in the equation $$\frac{dp}{d\theta}=0 \qquad\qquad (1)$$ This is considerably easier said than done, as $(1)$ becomes $$ \frac{a r \sin\left(\theta-\phi\right)}{\sqrt{a^2+r^2-2a r\cos\left(\theta-\phi\right)}} = \frac{bs\sin\left(\theta+\phi\right)}{\sqrt{b^2+s^2-2bs \cos\left(\theta+\phi\right)}} \qquad (2)$$ Squaring and "simplifying" gives a long polynomial in $\sin\theta$ AND $\cos\theta$. Another round of squaring and "simplifying" gets us to a polynomial in $\sin\theta$ OR $\cos\theta$, but it's somewhat less-complicated to express the polynomial equation in terms of complex exponentials: $$\sigma := e^{i\phi} = \cos\phi + i \sin\phi \qquad\qquad \tau := e^{i\theta} = \cos\theta + i \sin\theta$$
And here it is after division by $a^2 r^2 b^2 s^2 \sigma^3$ to highlight some symbolic (and "harmonic") symmetry: $$\begin{align} 0 &= \tau^6 \left( \frac{\sigma}{ar} - \frac{\overline{\sigma}}{bs} \right) + \left( \frac{\overline{\sigma}}{ar} - \frac{\sigma}{bs} \right) \\ &- \tau^5 \left( \frac{\sigma^2}{a^2} + \frac{\sigma^2}{r^2} - \frac{\overline{\sigma}^2}{b^2} -\frac{\overline{\sigma}^2}{s^2} \right) - \tau \left( \frac{\overline{\sigma}^2}{a^2} + \frac{\overline{\sigma}^2}{r^2} - \frac{\sigma^2}{b^2} - \frac{\sigma^2}{s^2} \right) \\ &- \tau^4 \left( \frac{2 \overline{\sigma}-\sigma^3}{ar} - \frac{ 2 \sigma - \overline{\sigma}^3 }{bs} \right) - \tau^2 \left( \frac{2 \sigma-\overline{\sigma}^3}{ar} -\frac{2 \overline{\sigma}-\sigma^3}{bs} \right) \\ &+ 2 \tau^3 \left( \frac{1}{a^2}+\frac{1}{r^2} - \frac{1}{b^2} - \frac{1}{s^2} \right) &(\star) \end{align}$$ A sixth-degree polynomial is, in general, symbolically intractable. Maybe there's some trigonometric structure here that gives rise to a symbolic solution, but this is about as far as I go.
Incidentally, in the case where $A$ lies on the outer bank ---that is, when $a=r$--- the polynomial has a double-root $\tau = \sigma$, corresponding to the condition $\theta = \phi$. This matches our expectation that the bridge must extend directly from $A$. (If the bridge were located anywhere else, then the path from $A$ to $R$ would itself pass through the river.)
Likewise, when $B$ lies on the inner bank, we get a double-root $\tau = \overline{\sigma}$; while this corresponds to having the bridge extend from $B$, it's not as obvious that the bridge must do so. (Unlike the $A$-on-the-bank case, a bridge located elsewhere does not require passing through the river to get from $B$ to $S$.)
@leonbloy's answer leverages Snell's Law. As one expects, his relation is equivalent to equation $(2)$ above. Writing $A^\prime$ and $B^\prime$ for the respective feet of perpendiculars from $A$ and $B$ onto $\overleftrightarrow{RS}$, the Snell equation becomes $$r \sin\angle ARA^\prime = s \sin\angle BSB^\prime$$ whereas equation $(2)$ asserts $$\frac{a r \sin\angle AOR}{|AR|} = \frac{b s \sin\angle BOS}{|BS|} $$ Since $$\begin{align} a \sin\angle AOR &= |AA^\prime| = |AR| \sin\angle ARA^\prime \\ b \sin\angle BOS &= |BB^\prime| = |BS| \sin\angle BSB^\prime \end{align}$$ the equations match.
Separating the $ar$ stuff from the $bs$ stuff in the polynomial $(\star)$ gives $$\left(\tau^2\sigma^2 - 1 \right)^2 \left(\frac{\tau}{a} - \frac{\sigma}{r} \right) \left( \frac{\tau}{r} - \frac{\sigma}{a} \right) = \left( \tau^2-\sigma^2 \right)^2 \left( \frac{\tau \sigma}{b} - \frac{1}{s} \right) \left(\frac{\tau\sigma}{s} - \frac{1}{b} \right) \qquad\quad (\star\star)$$ which seems to be trying to tell us something. Unsurprisingly, $(\star\star)$ can ultimately be manipulated into $(2)$, because $(2)$ is the computational essence of the problem. I'm wondering, though, whether $(\star\star)$ encodes geometric insights that help in understanding this result.
I should probably let this go. :)
One more thing ...
Equation $(2)$ can be interpreted geometrically as $$\frac{|\triangle AOR|}{|AR|} = \frac{|\triangle BOS|}{|BS|}$$
which implies that the altitudes of $\triangle AOR$ and $\triangle BOS$ corresponding to edges $AR$ and $BS$ are congruent. This says exactly that $O$ is equidistant from the (extended) edges, so that those (extended) edges must be tangent to some common circle about the origin. This gives us a strategy for finding the bridge.
Build an auxiliary circle (the purple dashed one) and let $Q$ and $R$ be the points where the tangents to that circle from $A$ meet the outer riverbank (blue circle), and let $S$ and $T$ be the points where the tangents from $B$ meet the inner riverbank (red circle). Build bridges at $Q$ and $R$ (in blue), and $S$ and $T$ (in red). Then, simply adjust the size of the auxiliary circle until a blue bridge overlaps a red bridge.
$\qquad$
I think that only two overlaps are ever feasible. (In the diagram, the $T$ bridge never gets close enough to the $Q$ and $R$ bridges ... except in the case of collinear $O$, $A$, $B$ when the auxiliary circle collapses to a point and all bridges coincide.) This seems consistent with a question I posed in a previous edit about whether four of the roots of $(\star)$ are always extraneous.
- 83,939
-
The problem is rotational invariant so you can put A right over the origin. Just a small simplification. – Oct 13 '13 at 02:50
-
2If you try some nice (say, integer) values for $a$, $b$, $c$, and $d$, and some nice values for $\theta$ ($\pi/2$, $\pi/4$, etc), does the polynomial have roots expressible with radicals or trig expressions? If not, then maybe there is just no hope beyond numerical methods. – 2'5 9'2 Oct 13 '13 at 07:40
The problem is equivalent to the famous Alhazen's problem in optics, which was solved geometrically by, among others, Christiaan Huygens:
http://www2.kenyon.edu/Depts/Math/Aydin/Teach/128/AlHazen.pdf
-
1
-
1The main reference is "Mathematical Origami: Another View of Alhazen's Optical Problem", by Roger C. Alperin. – Dec 26 '17 at 15:44
-
1
-
1@Viktor Kaspervich: At archive.org, I don't know where exactly, but it is there. I am sure, because I took a look at it some years ago and it was too tough for me and so I deleted the file. Sorry, :( – Dec 26 '17 at 16:01
-
1Relevant book: https://www.amazon.com/Science-without-Numbers-Hartry-Field/dp/0198777922 – Dec 26 '17 at 17:06
-
1Huygens solved Alhazen's problem, not this one. But since they are equivalent I think this one can be solved geometrically too. – Dec 26 '17 at 17:07
-
1
- This can be solved using Calculus.
- You are given points $A$ and $B$.
- Let the point $O$ be $(0,0)$ then $C$ is $(a \cos\theta, a \sin\theta)$, $D$ is $(b \cos\theta,b \sin\theta)$. [$a$ is $OC$, $b$ is $OD$]
- Write the equation for distance between $A$ and $B$, differentiate with respect to $\theta$ and set to $0$. $$|AB|=|AC|+|CD|+|DB|$$
- 1,794
-
9
-
-
2
-
4When I tried this approach, I found myself with an unwieldy sixth-degree polynomial in $\cos\theta$. Yuck. – Blue Oct 12 '13 at 20:27
-
-
Even in the special case where $A$ is on the outer bank, the polynomial has degree 4. – Blue Oct 12 '13 at 20:35
-
-
-
It's a correct approach. (+1 from me.) It just happens to be symbolically ugly. (It would be a sound numerical strategy.) Potentially, one might rule-out some roots of the symbolic polynomial, but that doesn't look like fun. If I can find the strength, I'll TeX-up the polynomial in a separate answer. – Blue Oct 12 '13 at 20:43
-
4+1. This problem is very similar tote goat grazing problem. Note that you don't need to include the bridge length, as it's fixed. Instead you have a function of the angle of the inner circle, and you want to minimize it. – Oct 12 '13 at 20:52
-
@Blue How does this answer constrain the points $C$ and $D$ to be colinear with $O$? – MattyZ Oct 12 '13 at 22:02
-
4@Bitrex: The problem stipulates that $C$ and $D$ are collinear with $O$: "One must build a bridge towards the center of the annulus ..." – Blue Oct 12 '13 at 22:04
-
