The cellular automaton Rule 30 is most commonly explored starting with a single 1 cell against a background of infinitely many 0 cells. This gives the familiar plot:

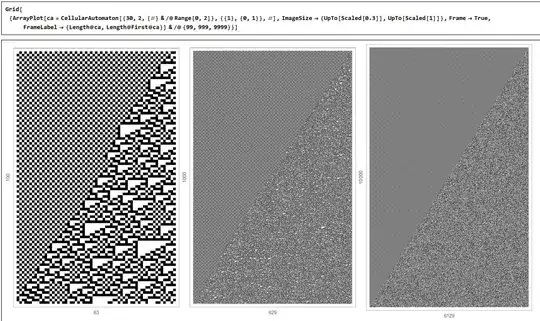

However, if you start with a 1 cell but use a background consisting of the pattern 01, you find that it only expands to fill a portion of its right side:

enter image description here

I noticed something curious about it today; it appears that the ratio of the "structured" part of each row to the preceding alternating cells approaches the Golden Ratio, $1.618\ldots$

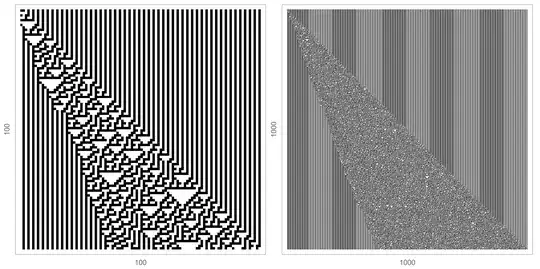

Equivalently, if you right-align the structured part of the plot, this is also the ratio of its height to its width (trimming the alternating background), like so:

enter image description here

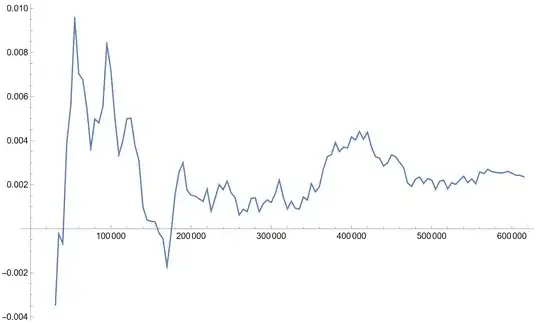

That said, this is an empirical guess only and it could be coincidental. A plot of the difference between the actual ratio and $\varphi$ through 600k rows is suggestive but hardly conclusive:

enter image description here

I'm inclined to think it really is slowly approaching $\varphi$ primarily because the ruleset and initial conditions seem too straightforward for it to spit out an arbitrary irrational, assuming Rule 30 is well-balanced in the long run as current evidence suggests. Unfortunately, the computation becomes slow work at this point (at least, using my naive approach) so that's as far as I've been able to check.

My question: what possible properties, either specifically or in general, might apply to Rule 30 in this case to explain why this ratio arises?

Alternatively, if someone can either put forth a good argument for why this is probably a meaningless coincidence, or can code a faster approach that resolves the issue one way or another, I'll also consider my question answered.

Trevor
  • 6,144
  • 16
  • 39
  • 2
    Equivalently, given that the structured part's right side moves with speed $1$, you conjecture that the left side moves with speed $1/(\varphi+1)\approx0.382$. – mr_e_man Jul 21 '22 at 20:35
  • Nice question! Have you tried using other initial conditions of this form? That is: alternating, then some random bit string, then alternating. Do they follow a similar pattern? – Jair Taylor Jul 21 '22 at 20:47
  • 1
    @JairTaylor Yep, it looks like any random bit string against that alternating background behaves roughly the same way; all of them are in the same ballpark ratio-wise. – Trevor Jul 22 '22 at 00:21
  • 2
    In that case, I am thinking modeling this process assuming some randomness could help, as a non-rigorous heuristic. – Jair Taylor Jul 22 '22 at 00:28
  • 2
    If you believe the ratio approaches the Golden Ratio, please upvote this comment. – Apass.Jack Aug 04 '22 at 11:02
  • 7
    If you believe the ratio approaches some constant that is not the Golden Ratio, please upvote this comment. – Apass.Jack Aug 04 '22 at 11:04
  • If you believe the ratio does not approach a constant, please upvote this comment – Apass.Jack Aug 05 '22 at 19:49
  • It would have been nice if you had included a graph of the ACTUAL ratio for 600k rows. If you look at the present graph, I have a feeling it is more like $1.618+\text{something}$. – Tito Piezas III Nov 15 '22 at 02:03
  • I have a question about the non-chaotic part of the 1000 by 1000 picture at the beginning of the post. Why do some area's look darker than others even if all consist of black and white stripes alternating? – Vincent Dec 28 '23 at 10:54
  • @Vincent, that looks like aliasing. – Karl Dec 28 '23 at 16:40

1 Answers1

4

I have written a multi-threaded C program to compute the ratio for 1M rows (which took some 1h20 on a friend of mine's beefy computer). It can be found here: https://github.com/mell-o-tron/Rule30Variation

The results seem to suggest that the ratio does not converge to $\phi$, but rather to some other constant.

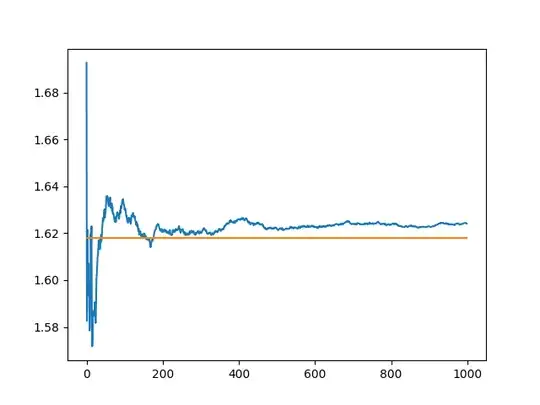

plot

I will add the raw data points to the Github if requested.

mell_o_tron
