Show that $K_n$ is not the union of two planar graphs for $n\ge 11$

I know that a graph $G$ is planar iff it does not have $K_5$ or $K_{3,3}$ as its induced subgraphs

But how to use it in the above problem.

Please help.

1 Answers1

0

IF by union you mean just put two graph that don't share any vertices together then that is super easy. Suppose $K_n$ is the union of two planar graph, then $K_n$ is planar. We know that for a planar graph $G$, $|E(G)|\leq 3|V(G)|-6$. A complete graph with more than $11$ vertices has more than $\binom{11}{2}=55$ edges. and in general a graph $G$ on $n$ vertices has $\binom{n}{2}$ edges. So combining the above inequality to get $\frac{n(n-1)}{2}=\binom{n}{2}=|E(G)| \leq 3n-6$. We know that quadratic grows faster than linear, so left side of inequality grows faster than right side. In particular, when $n \geq 11$, it doesn't hold anymore. One can check $55=\frac{11*10}{2} >27=33-6$. This is probably over complicated but it is the same argument to show the following.

If you mean two graph $H,K$ sharing all the vertices but different edges. Then because they are planar, we have $|E(H)|\leq 3|V(H)|-6$ and $|E(K)|\leq 3|V(K)|-6$.Now, Add those to get $|E(G)|\leq 6|V(G)|-12$. but then $\frac{n(n-1)}{2}=\binom{n}{2}=|E(G)| \leq 6n-12$ which means $n(n-1) \leq 12n-24$. But again left side is quadratic and right is linear and quadratic grows faster than linear. And we can check for $n=11$ we get by substituting into the previous inequality :$110 \leq 108$ which is not possible. And the bigger root of $n^2-13n+24=0$ is $\frac{13 \pm \sqrt{13^2-4*24}}{2}=\frac{13 \pm \sqrt{73}}{2} \approx \frac{13+8}{2} \approx 10.5 $. So anything after the root, you have left side greater than right side.

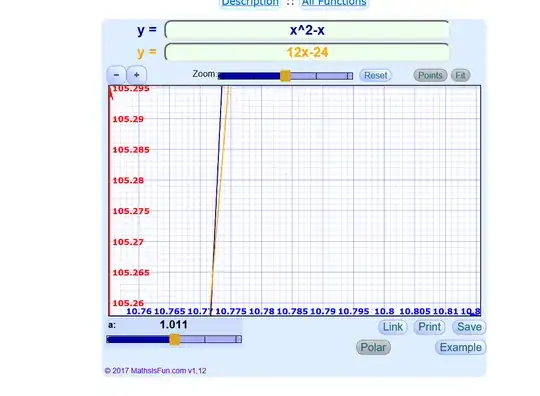

I hope this is correct. Here is the graph of the function of the two side of inequalities where we can see the the quadratic grows faster than linear after $n \approx 10.77$: enter image description here

user614287
  • 1,305
  • 1
  • 16
  • 32
  • Wont $V(H)+V(K)=V(G)$? –  Dec 05 '18 at 08:55
  • I thought H and K have the same vertices, so when you add them together you double count. Ahh! Actually, You can't make complete graph otherwise. – user614287 Dec 05 '18 at 08:56
  • But here we are doing union of two graphs so number of vertices of H and K will equal the number of vertices of $K_n$ –  Dec 05 '18 at 09:42
  • But union of two graph can't be a complete graph can it? – user614287 Dec 05 '18 at 09:49
  • yes ,thats true ,but this is what the question says,is not it –  Dec 05 '18 at 09:56
  • But then the statement is always true. How do you exhibit $K_3$ as the union of two planar graph? – user614287 Dec 05 '18 at 10:37
  • @mathnoob you are mixing up “union” and “disjoint union”. If I take the graph with edges 12, 23 and the graph with edge 13, then their union is $K_3$. Disjoint union requires vertex sets to be disjoint, but union does not. – Gordon Royle Dec 05 '18 at 12:35
  • In that case, the sum of the number of vertices of the two planar graph is greater than that of the complete graph. – user614287 Dec 05 '18 at 12:37
