I am trying to do a approximation plot with Runge Kutta. In matlab, the discrete plot I use is "scatterplot".

Unfortunately because of so many data points, the data points get mashed in and forms a line almost.

Also each data point is a giant empty circle. I was wonder if it is possible to just plot dots.

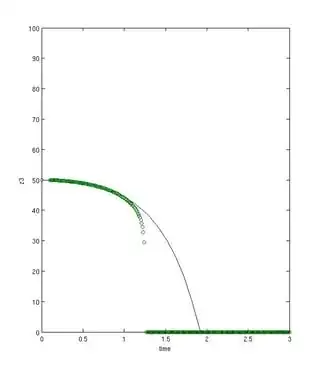

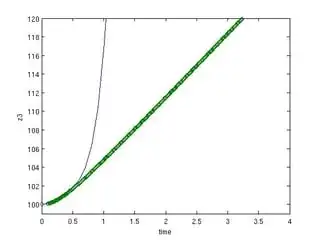

Examples of what I am getting.

is it possible to make it more sparse and dotted points instead of void circles? Thanks enter image description hereenter image description here

Lemon
  • 12,972

1 Answers1

3

From the Matlab documentation:

scatterplot(x,n,offset,plotstring) is the same as the syntax above, except that plotstring determines the plotting symbol, line type, and color for the plot. plotstring is a string whose format and meaning are the same as in the plot function.

and for plotting dots with the plot function you can use plot(A,B,'.') i.e. '.' is the plotstring you want.

For more information have a look here

Example

theta = linspace(0,1,500);
x = exp(theta).*sin(100*theta);
y = exp(theta).*cos(100*theta);
figure
s = scatter(x,y,'.');
figure
t = scatter(x,y,'sr');

will output:
enter image description here

enter image description here

Surb
  • 57,262
  • 11
  • 68
  • 119
  • How do you know what plotstring symbols are available, I tried googling and found irrelevant links. I even tried custom symbols like the letter 'A'. – Lemon Jul 30 '15 at 14:26
  • @Hawk have a look at the link given in the answer (scroll down) – Surb Jul 30 '15 at 18:32
