Understanding basic queue and dequeue operations

Question

CLRS gives the following implementation for a queue's enqueue and dequeue operations

head = 1
tail = 1

ENQUEUE(Q, x)
Q[Q.tail] = x
if Q.tail == Q.length
    Q.tail = 1
else Q.tail = Q.tail + 1

DEQUEUE(Q)
x = Q[Q.head]
if Q.head == Q.length
    Q.head = 1
else Q.head = Q.head + 1
return x

but I'm having trouble understanding why both

if Q.tail == Q.length
    Q.tail = 1

and

if Q.head == Q.length
    Q.head = 1

are needed. What would be a conceptual (or possibly visual) explanation of these two if-statements?

score 3 · Accepted Answer · answered Nov 05 '18 at 03:38

CLRS defines a queue using an array which wraps around i.e when we no longer can insert/delete in the last position, we move to the first position.

From the book,

The elements in the queue are in locations head[Q], head [Q] + 1, . . . , tail [Q] - 1, where we "wrap around" in the sense that location 1 immediately follows location n in a circular order.

Thus,

if Q.tail == Q.length

This is for the condition when the tail points to the last element.

if Q.head == Q.length

This is for the condition when the head points to the last element.

In both cases, we move to the first element due to circular nature.

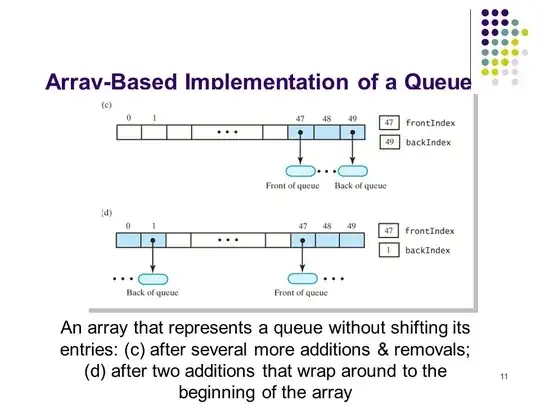

An example would be this:
