Hotend heating failure too short before limit

Question

I am trying to resolve this for months and have tried almost everything, I guess.

I am using Marlin firmware on a custom extruder with a custom fabricated heating block in which heater and thermistor (Marlin Temp_Sensor 11) are set up perpendicular to each other. Whenever I try to heat it up to 200 degree Celsius, it falls short and fails at around 140 and that too with a very low pace (especially between 100 to 140).

I have already tried PID tuning, ADC values calibration, etc. Also, I have tried varying the values of Watch_Temp_Sensor in Configuration_Adv.h. I don't know what's going wrong.

Can extruder coldend fan have an effect on the heating of thermal block? I have tried heating the hotend without cooling the coldend, although it takes around 10-12 minutes yet it works perfectly fine then and it reaches to the desired temperature.

The power supply is working fine

P.S. I am not using any kind of pre-built extruder like E3D etc.

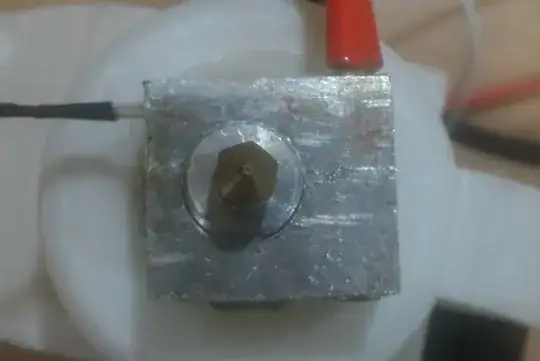

This is the setup:

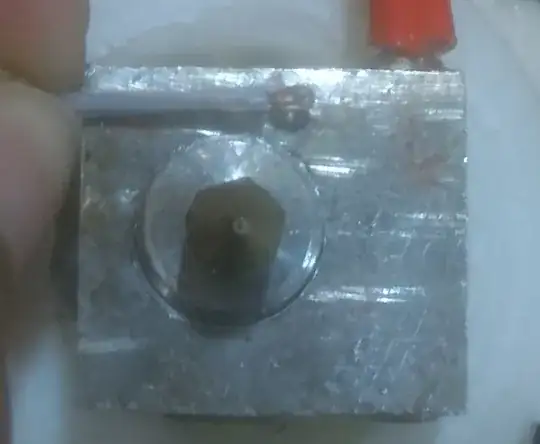

This is the thermistor setup:

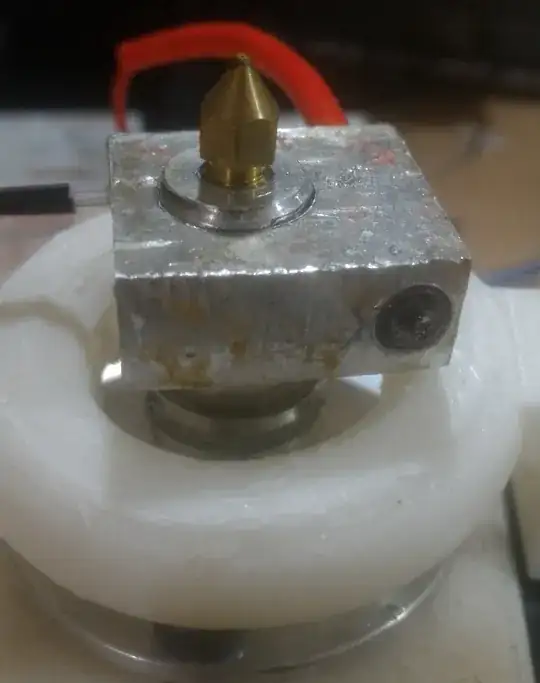

This is a view of heater position:

Answer 1

There are many unknowns at this point, you need to work methodically through each stage. You probably also need some test equipment, at least a basic multimeter. Ideally a temperature probe too.

First, check that your power supply can drive the hot-end directly. You already know how long it takes to reach 120°C, so be sure to not let it heat too far beyond this time. This will bypass all of the control logic, and risks overheating your hotend/burning out the heater - but it should be OK if you limit to a few minutes.

Check the temperature reading, and cross check with some PLA or other low melting point filament to see if you actually reach ~180°C. Check the voltage as close to the heating cartridge as you have a connection point. It should be at least 11V (with a 12V PSU). My guess is that you have a bad connection somewhere...

If you observe the hotend getting hot enough to melt plastic, check the thermistor readings. You should see a fairly constant rate of heating well past 200°C. However, I expect this will work fine.

Finally, check the hotend mosfet drive and output as the hotend reaches the target temperature. It should be on, then switching on/off, then off as you pass the target.

If this all looks OK, repeat but with the board in-circuit and controlling the heater. It may be that the mosfet is damaged, or it is not being driven very well - but to progress past that point we need to see voltage readings at various points.

Answer 2

Now that we can see the real problem, your heater cartridge doesn't have good thermal contact to the block, and the block does not have good contact to the nozzle.

Where is your heatbreak? You need to perform a basic analysis of the heat flow in your design. Anything that is expected to conduct needs to be clamped, and to have thermal paste. Any connection between hot and cold which is used for mechanical support needs to have minimal cross section, and maybe use materials with poor thermal conductivity.

Example

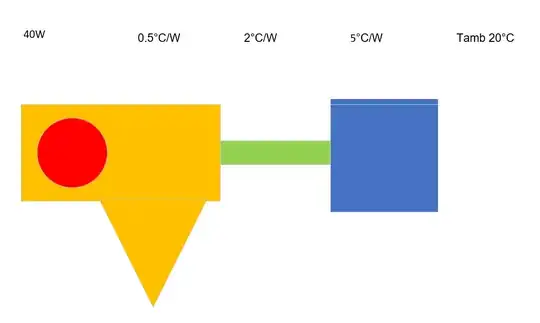

Here is a simplified diagram, with some assumed thermal resistances. Note that the geometry is not representative since your nozzle is actually within the throat, not between the heater and the throat as I've shown.

Total thermal resistance is 7.5 °C/W. Maximum heat in is 40W, so the heater is at 320°C, and the nozzle can reach 300°C.

Replace the heater with a 20W element, and the nozzle drops to 170°C.

Keep the heater at 20W, to achieve 220° at the nozzle, the throat needs to provide at least 4.5°C/W thermal resistance.

Assuming you're using a 10 mm diameter aluminium bar as a heat break, it needs to be 7 cm long with a 20 W heater. If you use steel instead, the length can be reduced by a factor of about 3.
