As you can see from the picture, the part is good except some missing layers near the bottom. I have tried to search for this problem but nothing similar appeared. So, what might be the cause and what is the name for this problem?

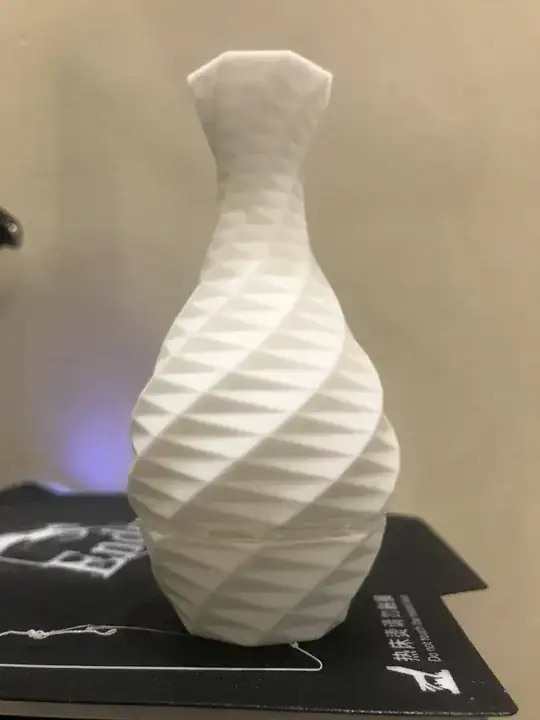

Photo showing print issue

  • Printer: Ender3, new.
  • Slicer: Cura
  • Nozzle: 0.4 mm
  • Temperature:
    • 200 °C nozzle
    • 50 °C bed
  • Material: PLA
  • Print speed: 50 mm/s
Trish
  • 22,760
  • 13
  • 53
  • 106
Forenkazan
  • 51
  • 2

1 Answers1

1

This looks like either the nozzle had been clogged for some layers and it resolved itself or the g-code contained incorrect instructions.

I suggest altering your print settings slightly and reslicing, then just printing it again. To get more accuracy on the prints, I suggest a line width of 0.45 mm.
